Boardman ADV 9.4 Mens Adventure Bike - XL Frames
456390

4.0

(2)

£2,650.00 £2,385.00 save £265
Intervening prices may have been charged
Save up to £1,120.95 with Cycle2work
  • Frame & Fork : Lightweight Carbon Frame and Fork
  • Gears : SRAM Rival eTap AXS
  • Brakes : Hydraulic Disc Brakes

1 Choose A Size

Size: XL
Sizing
Need help choosing?
View our size guide
Sizing
Need help choosing?

2 Would You Like It Built?

3 Add a CycleCare plan?

4 Check Availability

Use my location
Please select a valid postcode or location from list
Booking system unavailable, please try again later.
FREE Click & Collect
Home Delivery
Boardman ADV 9.4 Mens Adventure Bike - XL Frames
Boardman ADV 9.4 Mens Adventure Bike - XL Frames
£2,650.00 £2,385.00 save £265
Intervening prices may have been charged

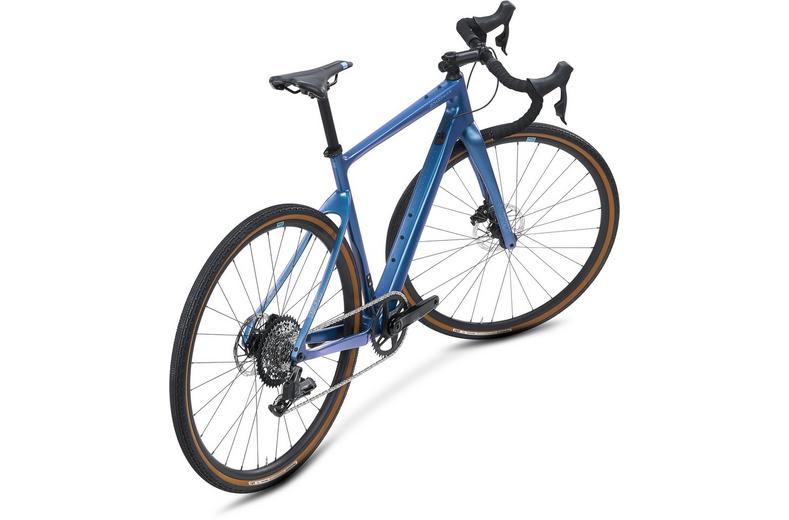

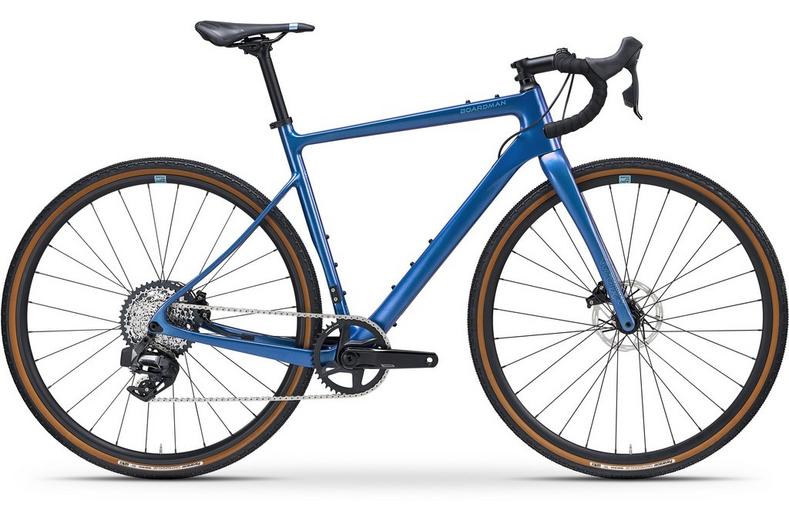

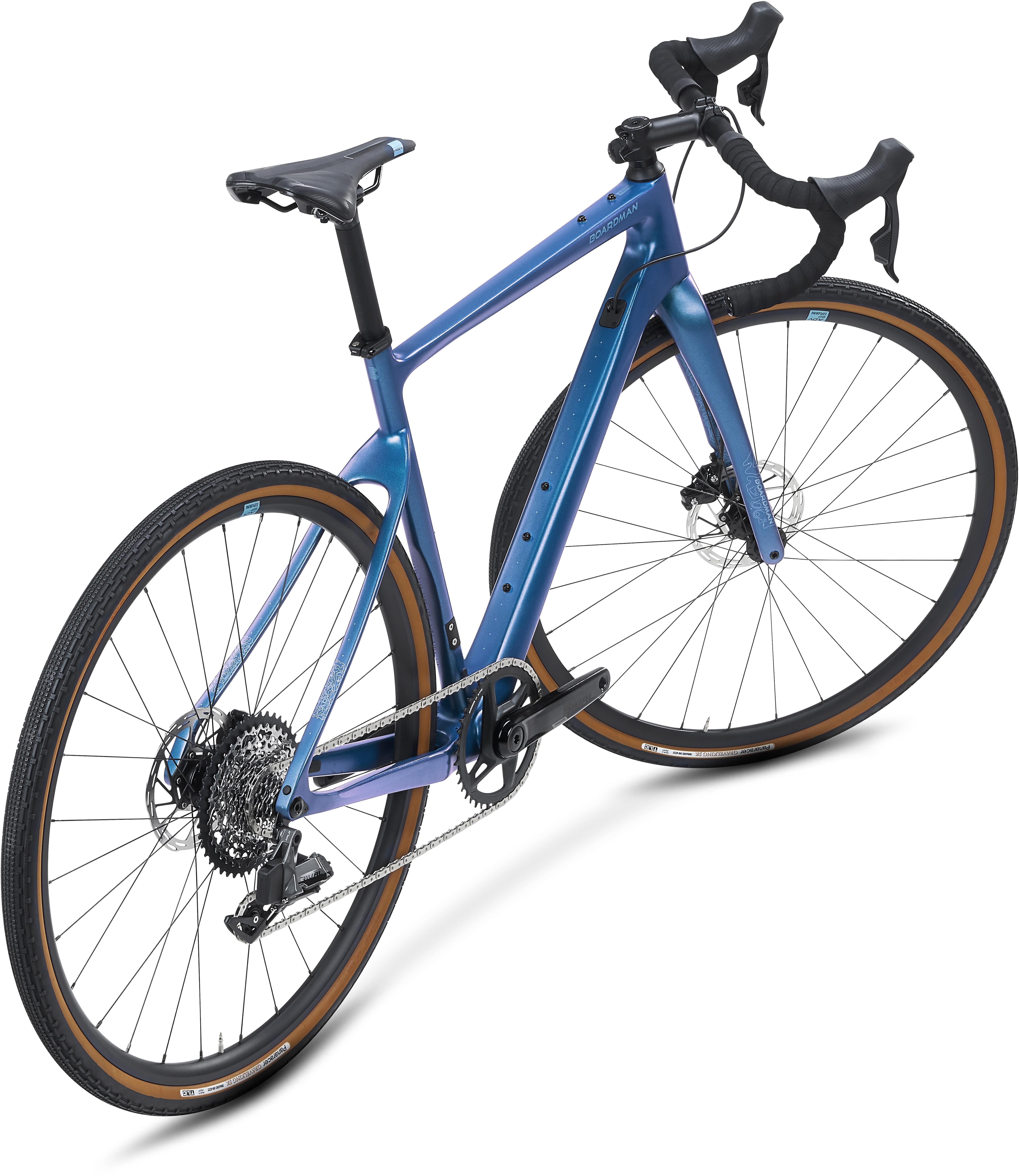

Boardman ADV 9.4 Mens Adventure Bike - S, M, L, XL Frames

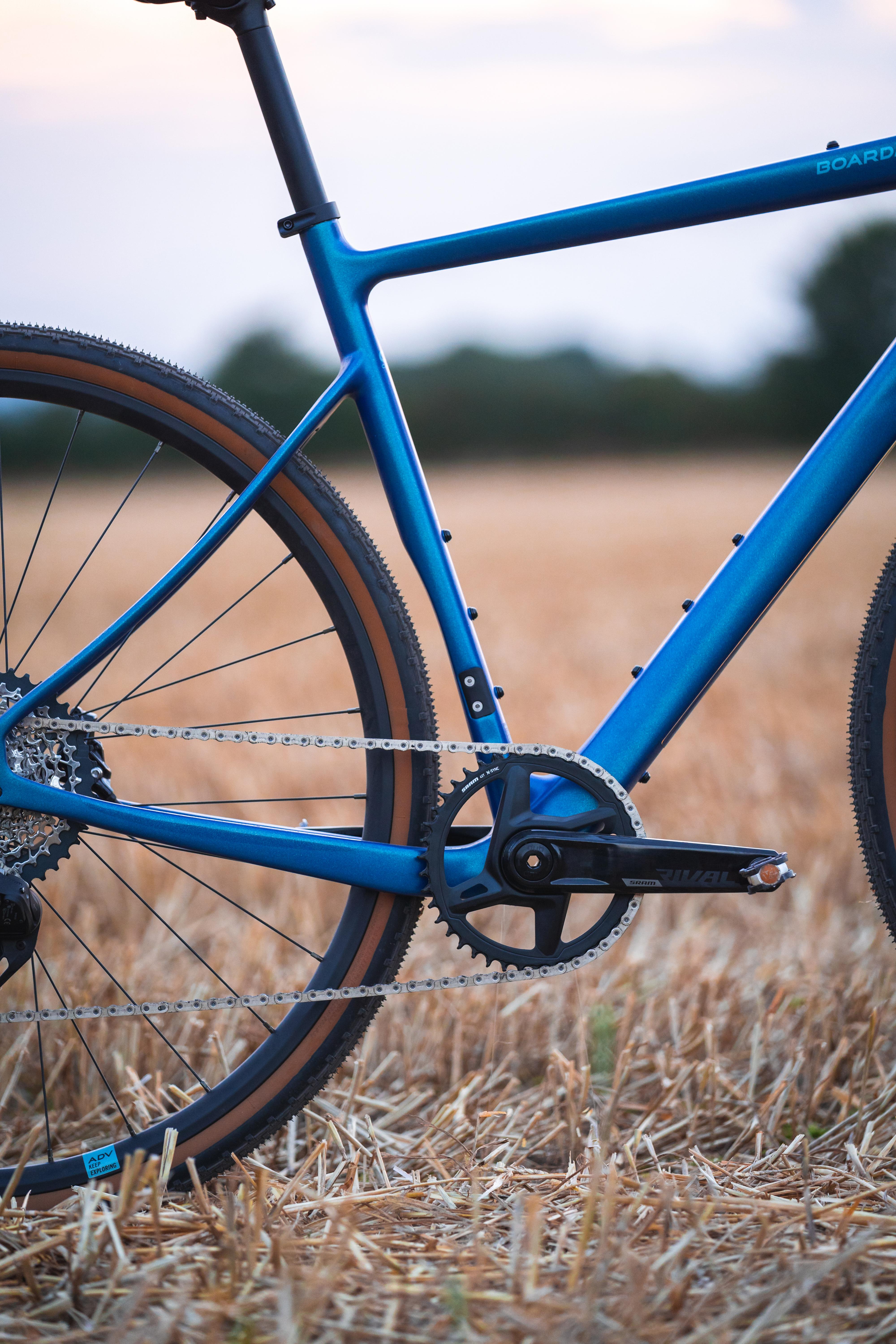

  • Frame: C10 Carbon frame weighing just 990g
  • Forks: Full C10 Carbon tapered fork weighing 420g
  • Gears: SRAM Rival 1x12 XPLR eTap AXS electronic shifting – with a large 10-44t cassette

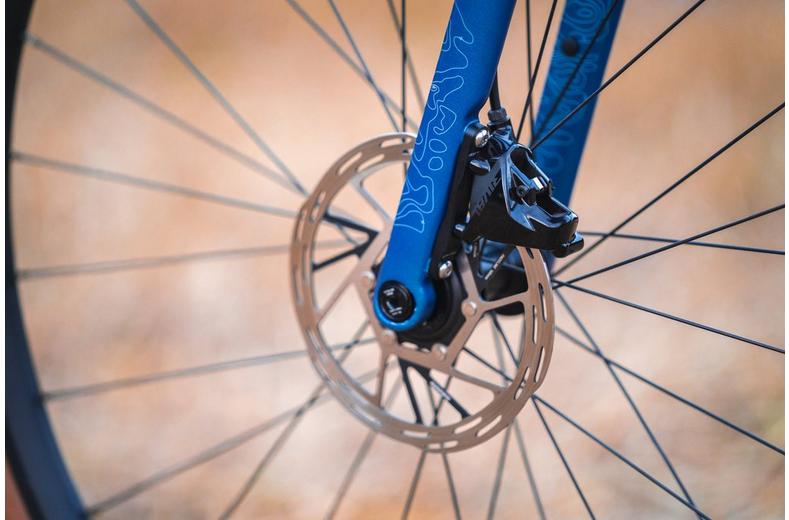

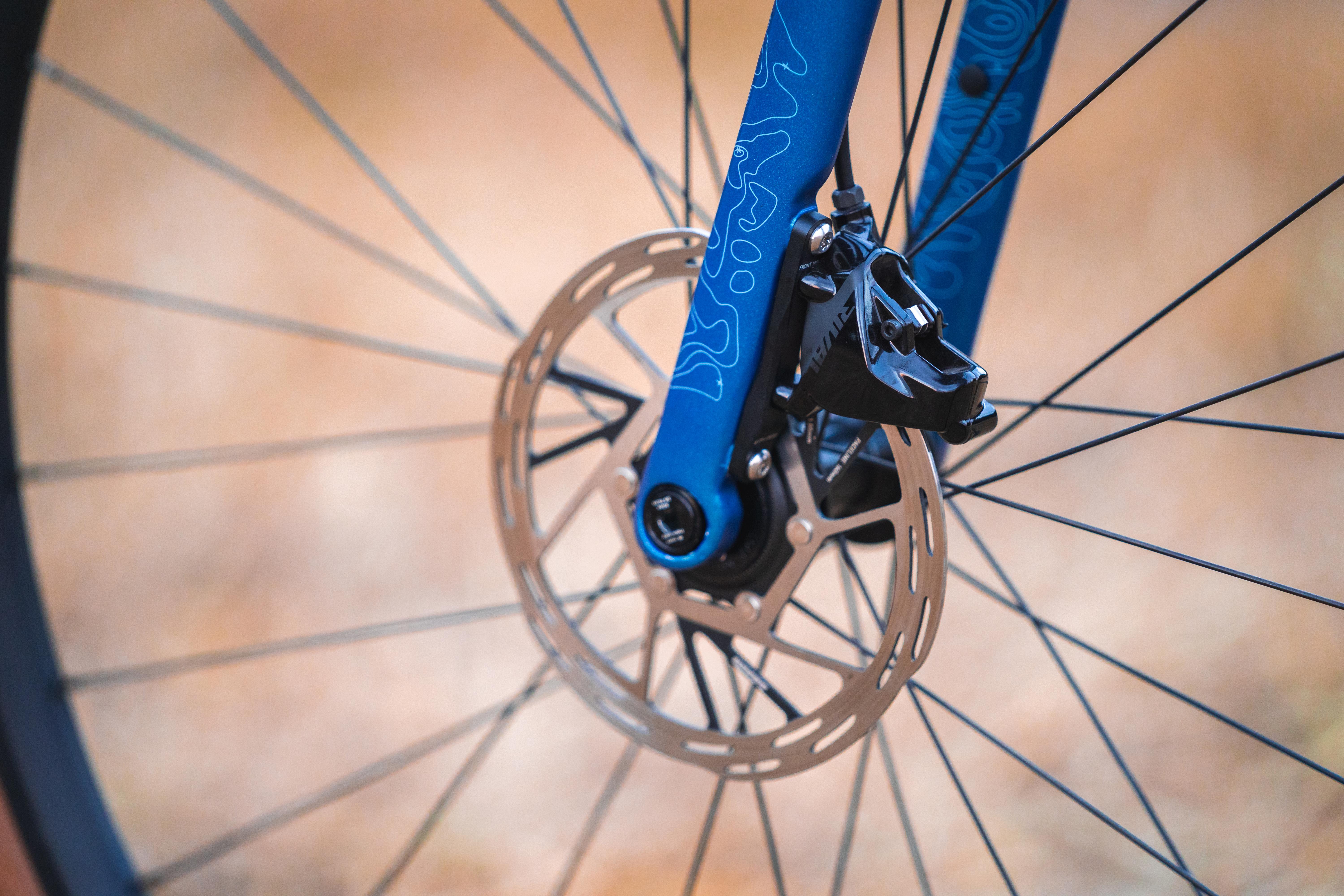

  • Brakes: SRAM Rival Hydraulic Disc Brakes for high performance stopping power
  • Wheels: Boardman thru axle wheelset, pre-taped and supplied with valve, just add sealant to run tubeless
  • Tyres: 700x38c Panaracer Gravel King SK tyres, tubeless ready

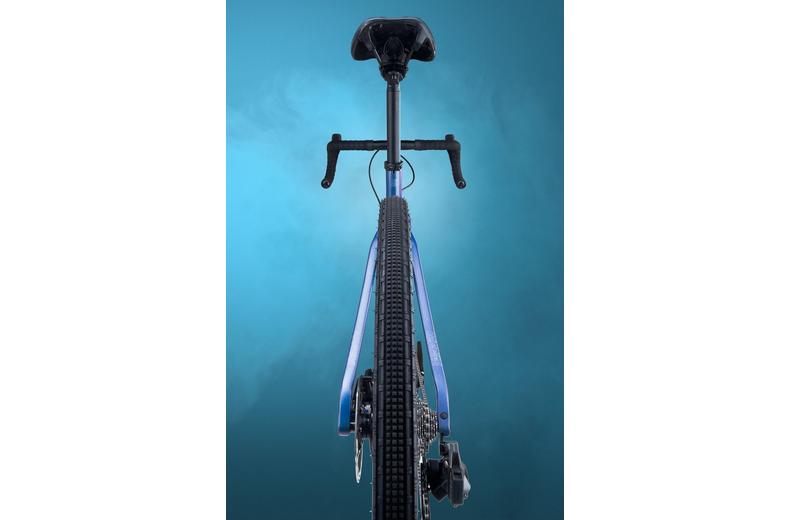

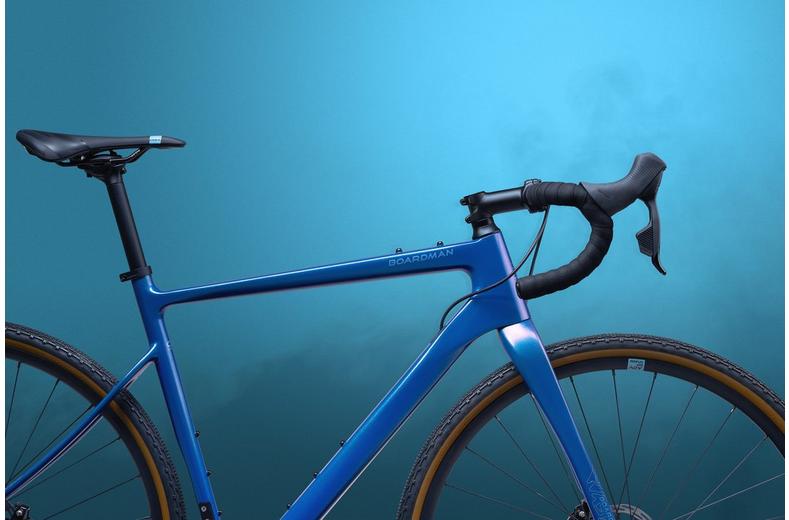

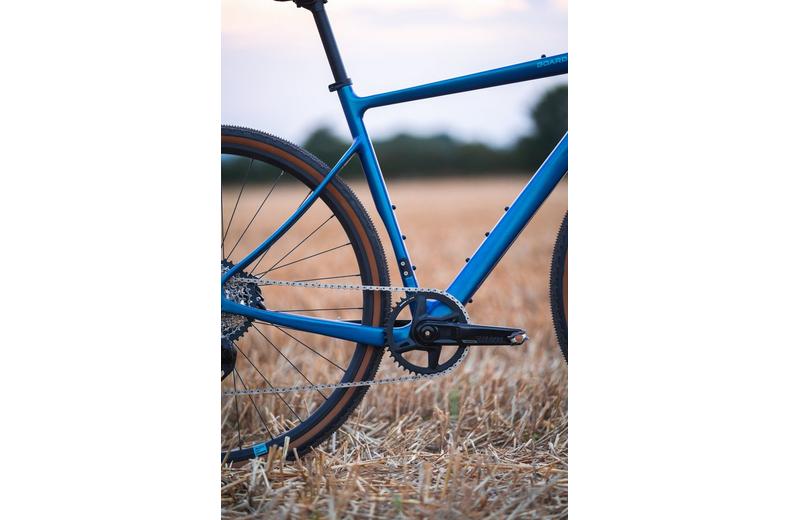

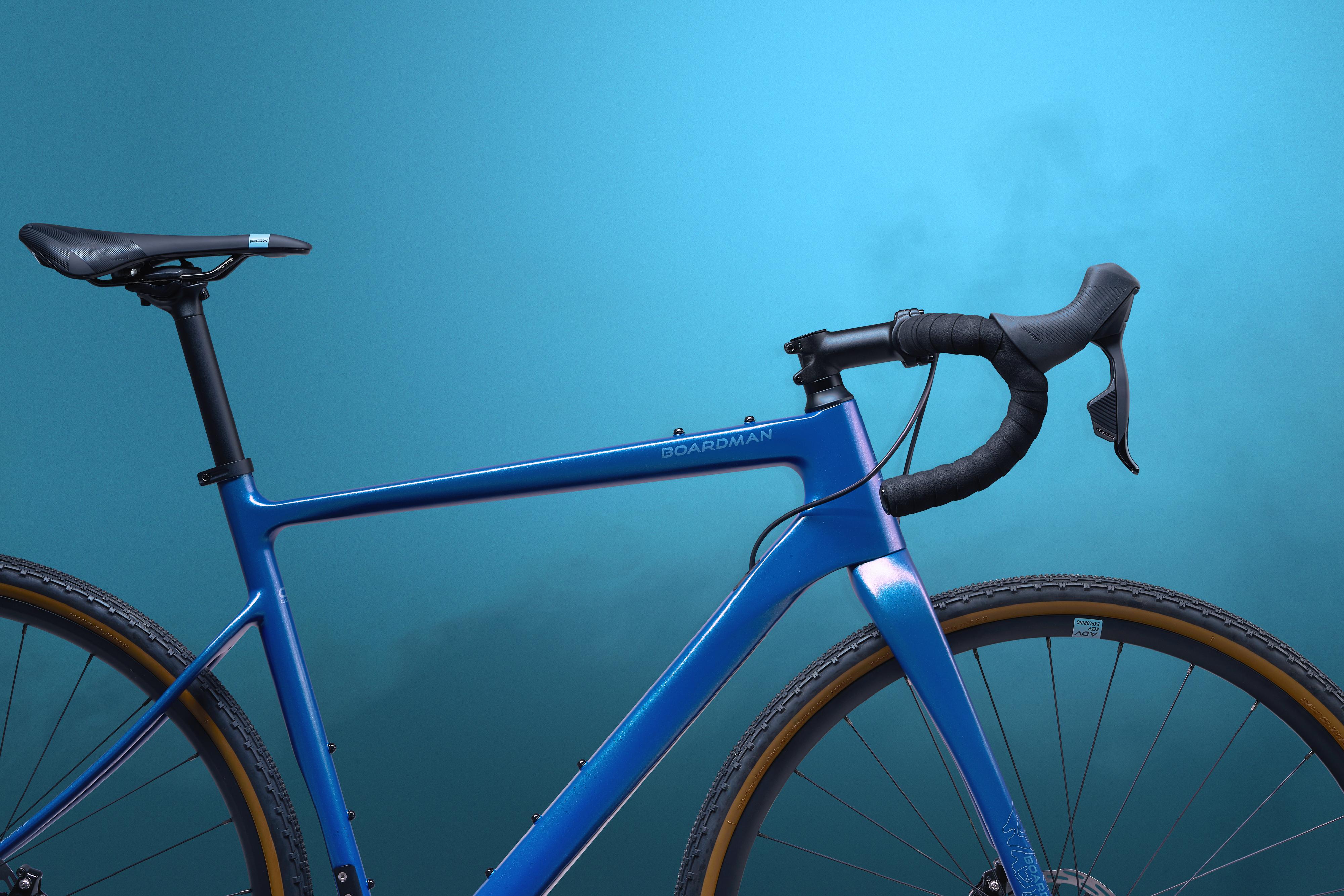

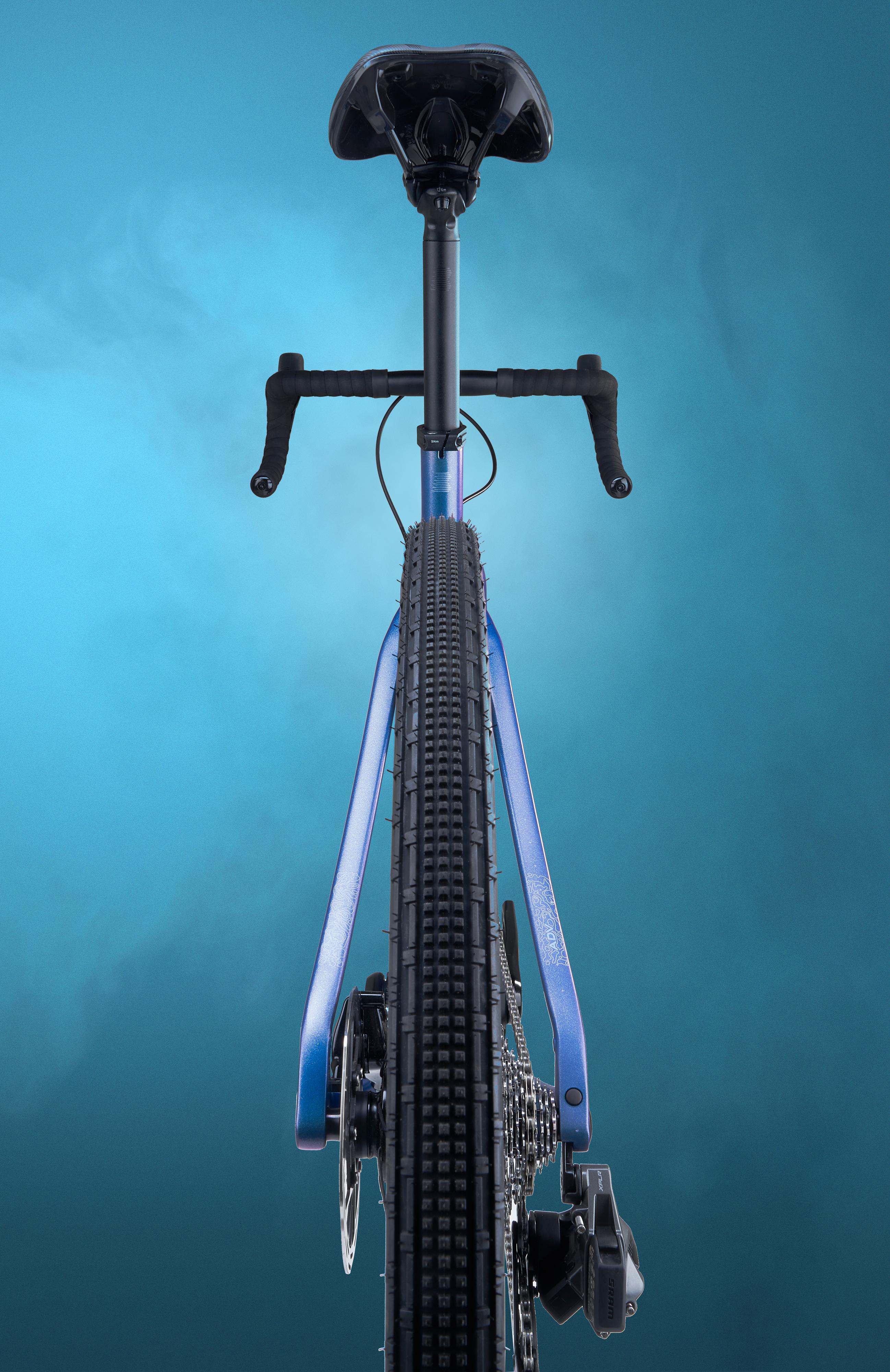

The ADV 9 Series range is designed to shine on the U.K.'s network of bridleways, fire roads and towpaths, not to mention those pothole-ridden lanes. Carefully considered design combined with Boardman’s high-modulus C10 Carbon has yielded a frame tough enough for rough rides, but with a painted weight of 990g including all frame hardware. Excellent ride comfort is achieved with bow-curve seat stays and seat tube cut out allowing movement of the rear axle and seatpost, absorbing impacts and vibration.

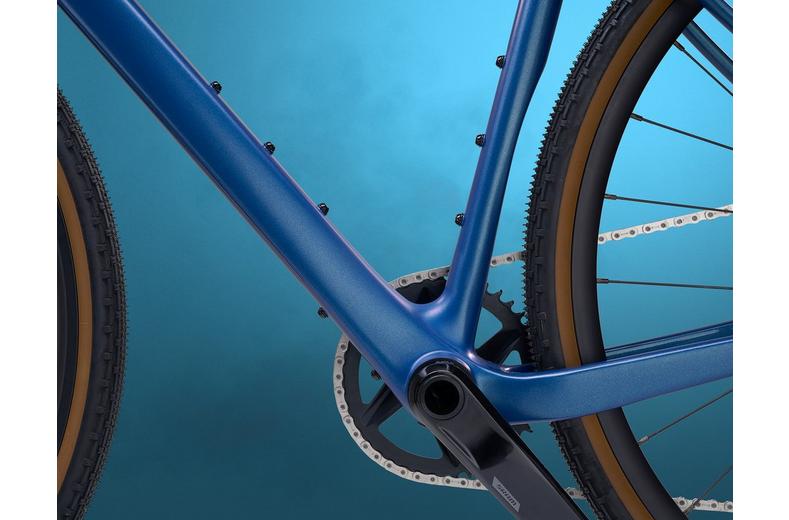

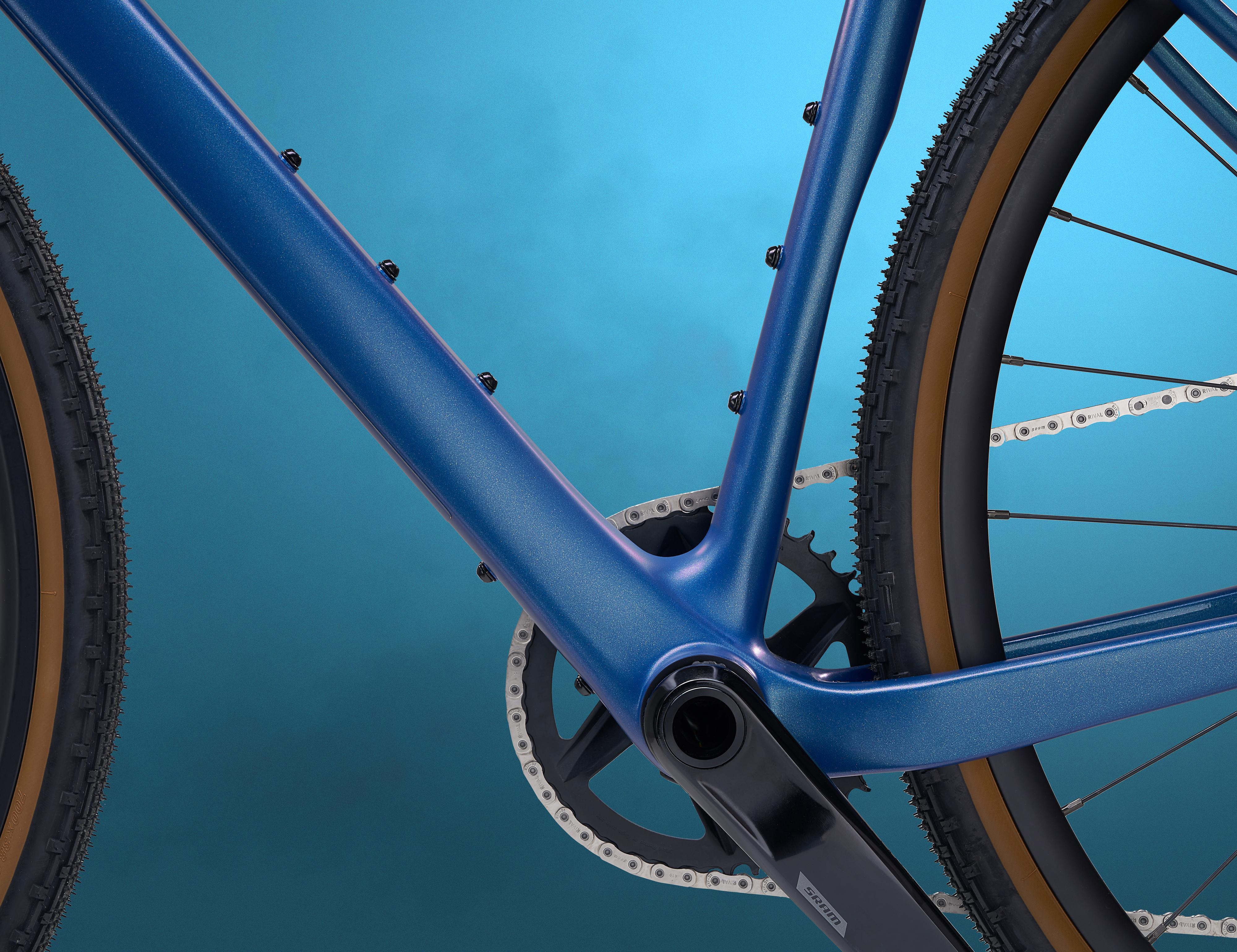

The geometry provides stability with slackened head angles and a low 73mm BB drop, but short stems still offer agility when needed. Long top tubes allow an efficient road position for linking up off road sections or long-distance rides on tarmac. With clearance for 42mm 700c tyres, hidden mudguard mounts and multiple mounting points for bottles and accessories inside the front triangle as well as under the down tube and on the top tube. There’s huge scope to customise the ADV 9.4 Bike and truly take it anywhere.

Boardman ADV 9.4 Adventure Bike - Extra Info

  • Bike build available by our expert bike technicians. Learn more
  • Unlimited lifetime safety checks
  • Lifetime guarantee on frames and rigid forks*
  • Cyclecare available
*Please see our T&C's here

More About The New Boardman ADV 9.4 Mens Adventure Bike

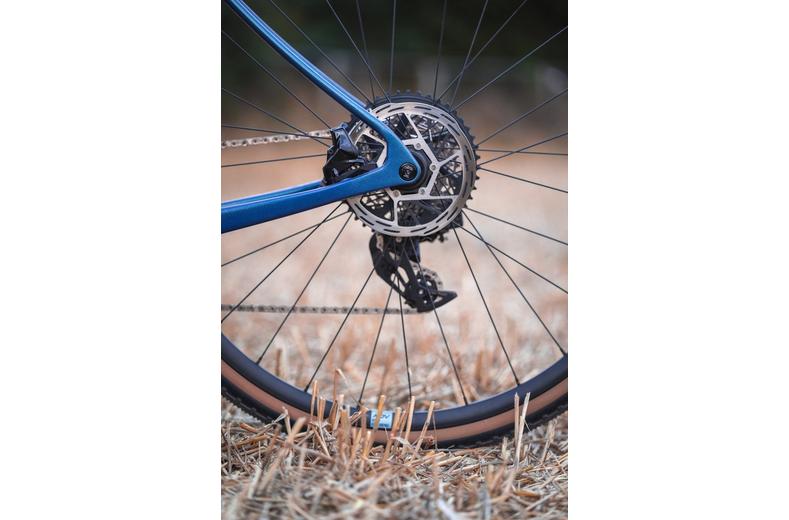

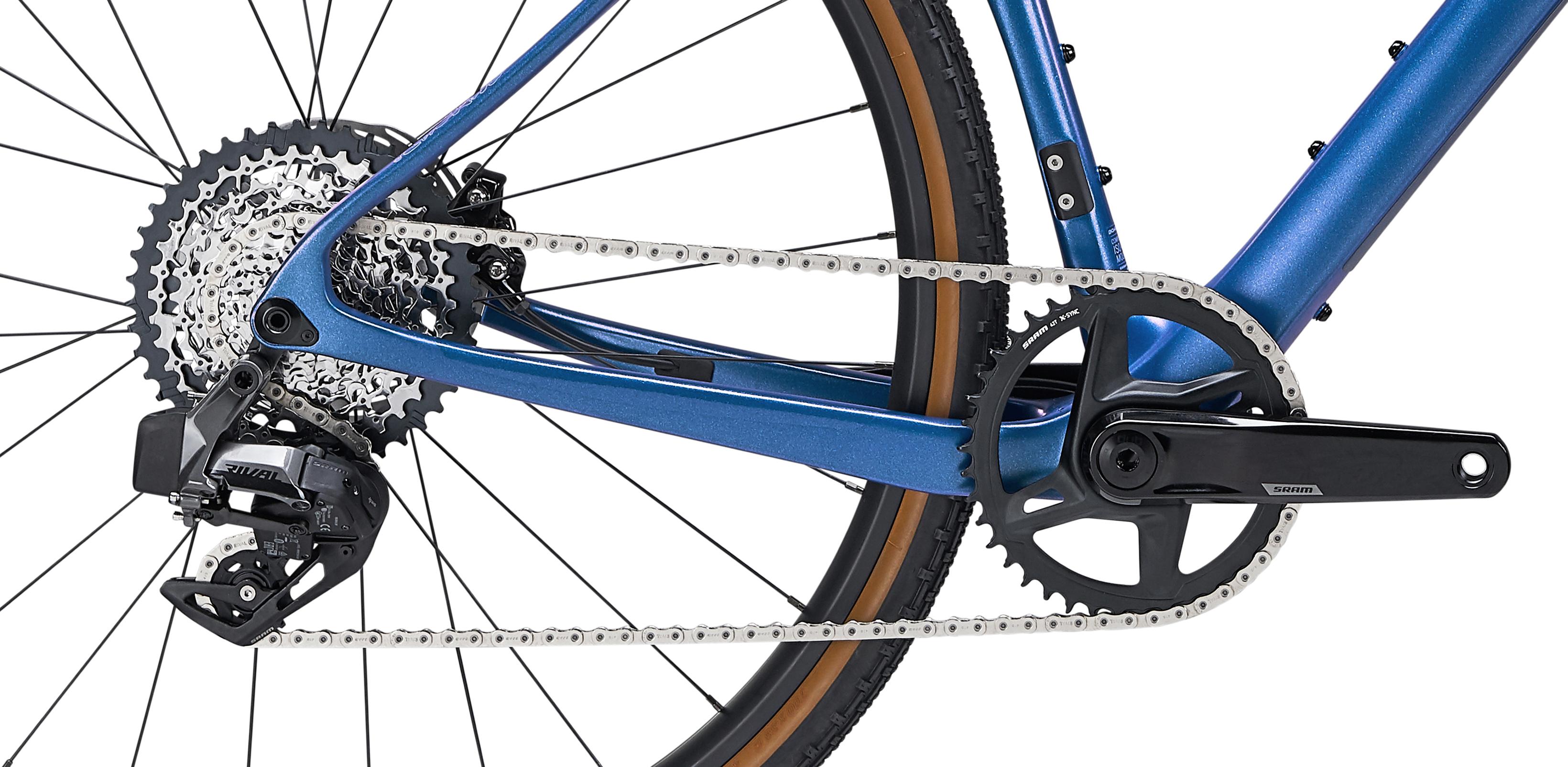

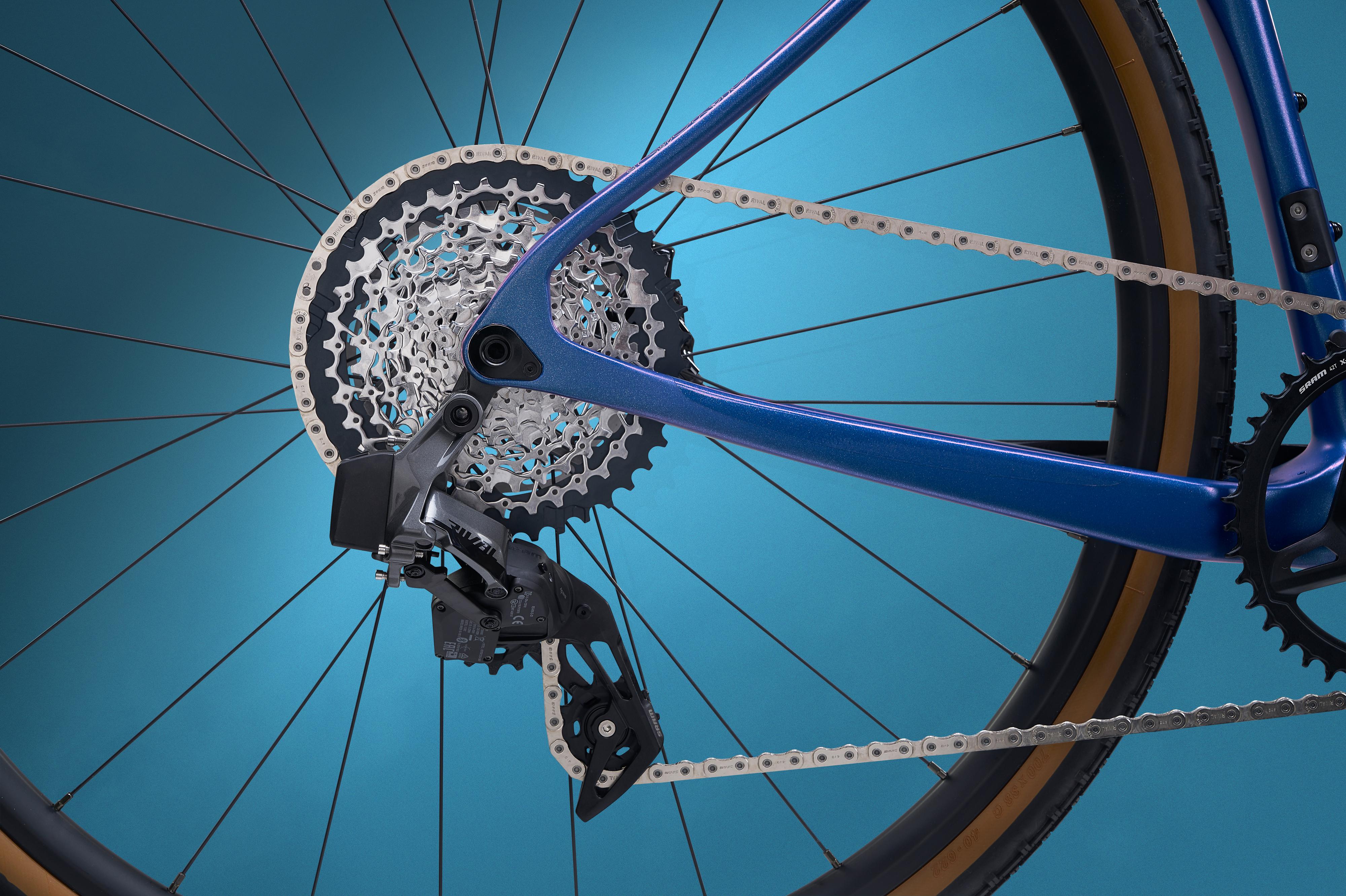

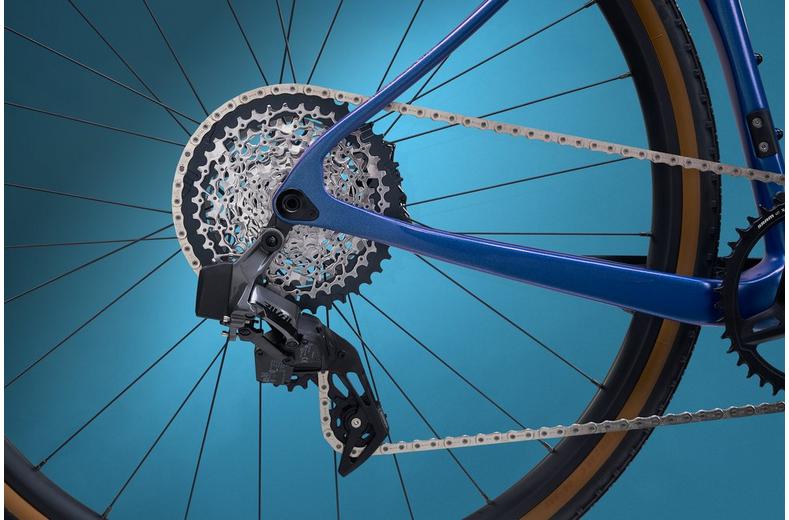

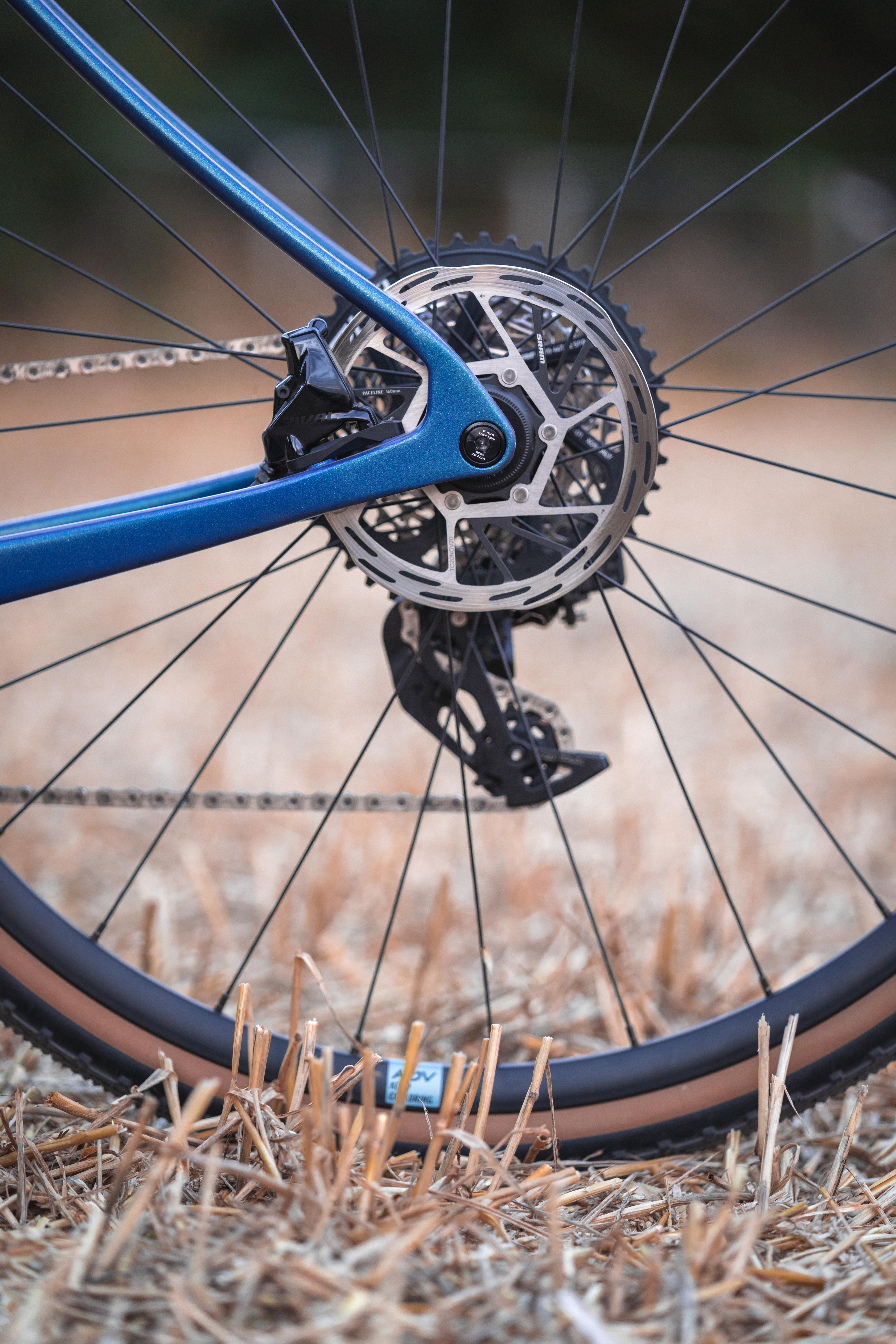

SRAM Rival XPLR eTap AXS Groupset

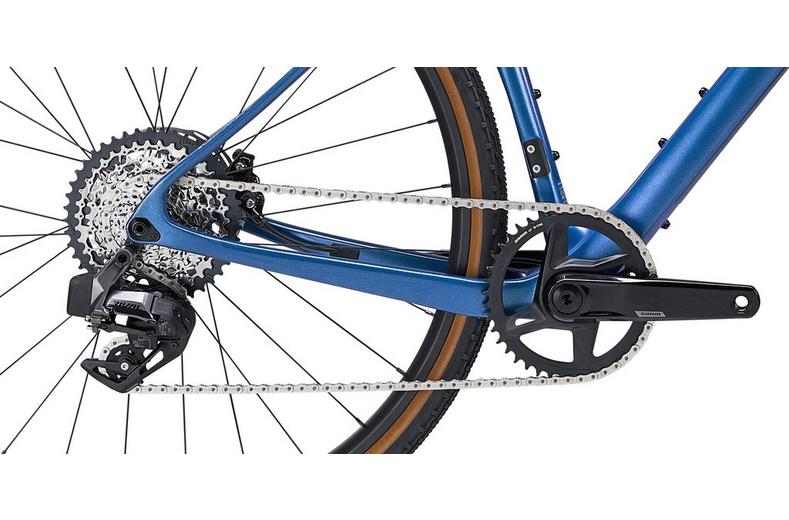

SRAM's Rival XPLR eTap AXS groupset is the most affordable gravel-specific electronic groupset and offers impressive performance. Wireless shifts across the 12 speed 10-44t cassette are fast and smooth and combined with a single 42t chainring up front; there's a massive range of gears for off-road climbing right through to fast road descents. A 1X system brings simplicity to shifting; simply press the left shift paddle for an easier gear or the right one for a harder gear, leaving you free to stay in the moment as you explore. Powerful hydraulic disc brakes make the 9.4 easy to control on loose surfaces, with plenty of stopping power on tap when you need it.

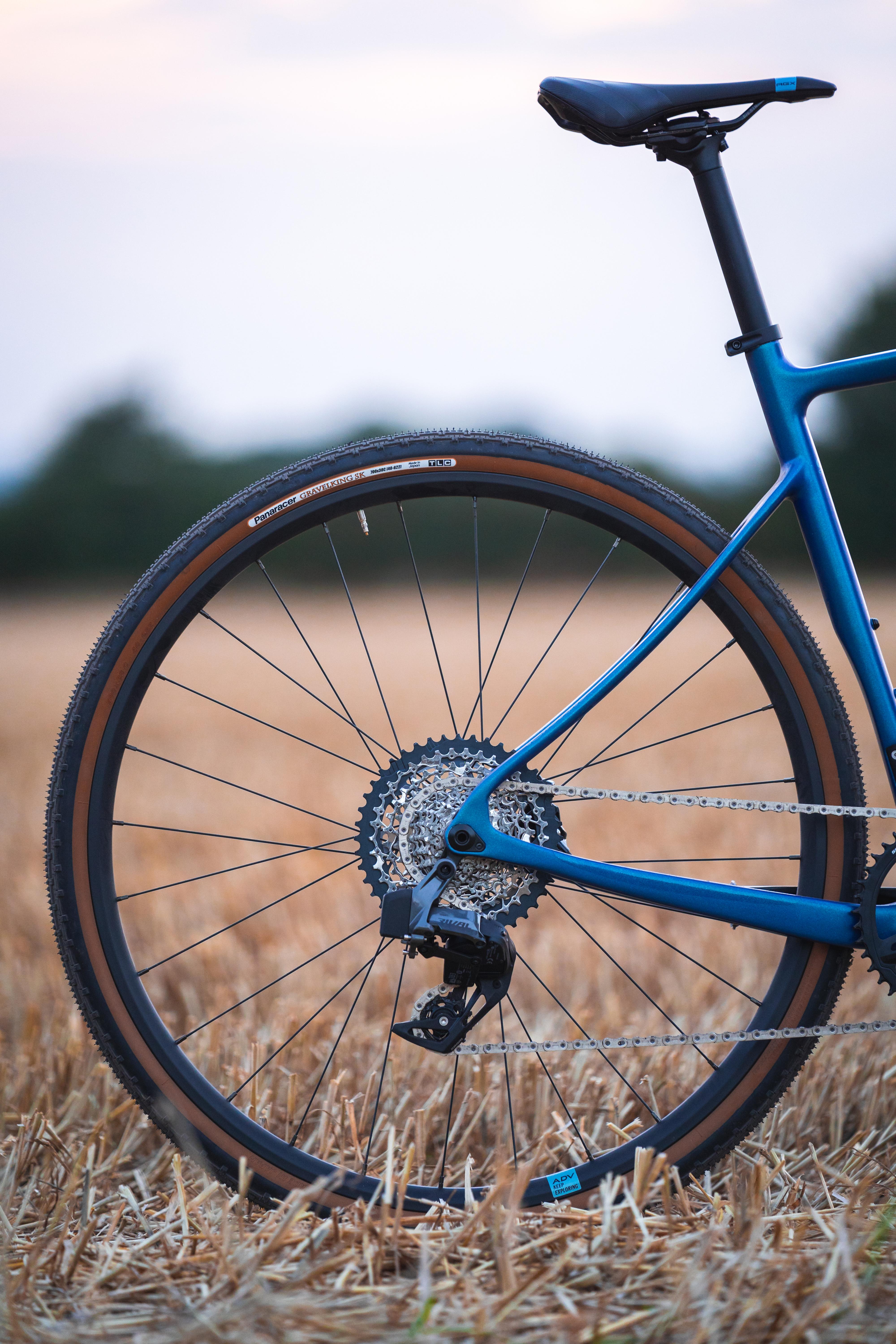

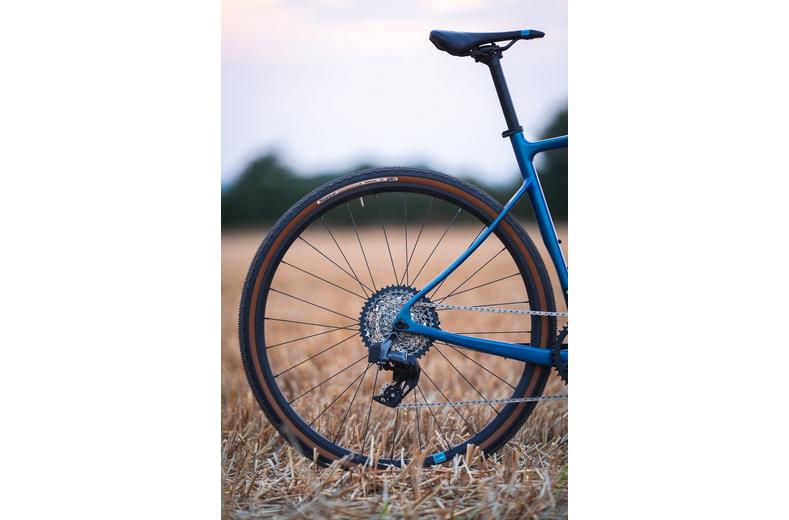

Just Add Sealant

Tyres are so important when it comes to mixed terrain riding, and Panaracer’s GravelKing SK in 700cx38mm size are a very versatile option. A closely packed centre tread rolls fast on harder surfaces, while the blocky, more widely spaced edge knobs give plenty of bite for cornering on loose surfaces. A supple, 120tpi tubeless ready casing enhances grip and comfort. Wheels are a custom- built Boardman ADV set up, with through axle hubs laced with 28 Sapim Race spokes to 20mm internal width alloy rims. They come taped for tubeless and with valves supplied, so just add sealant to reap all the benefits of ditching inner tubes!

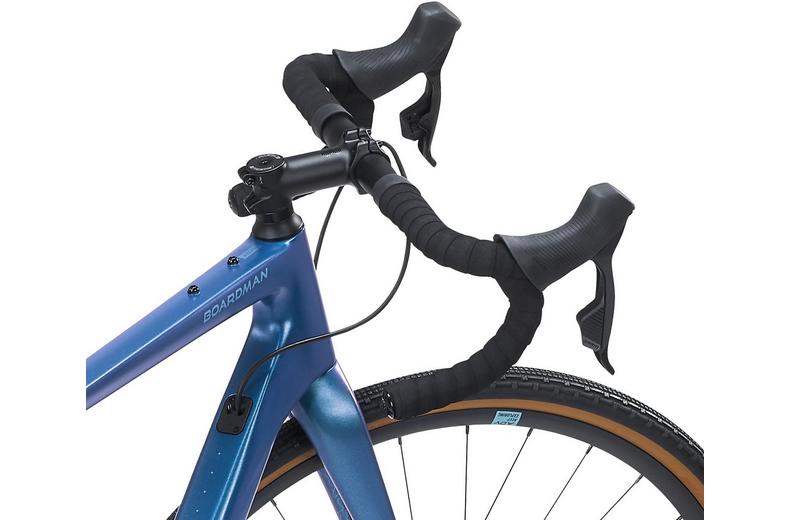

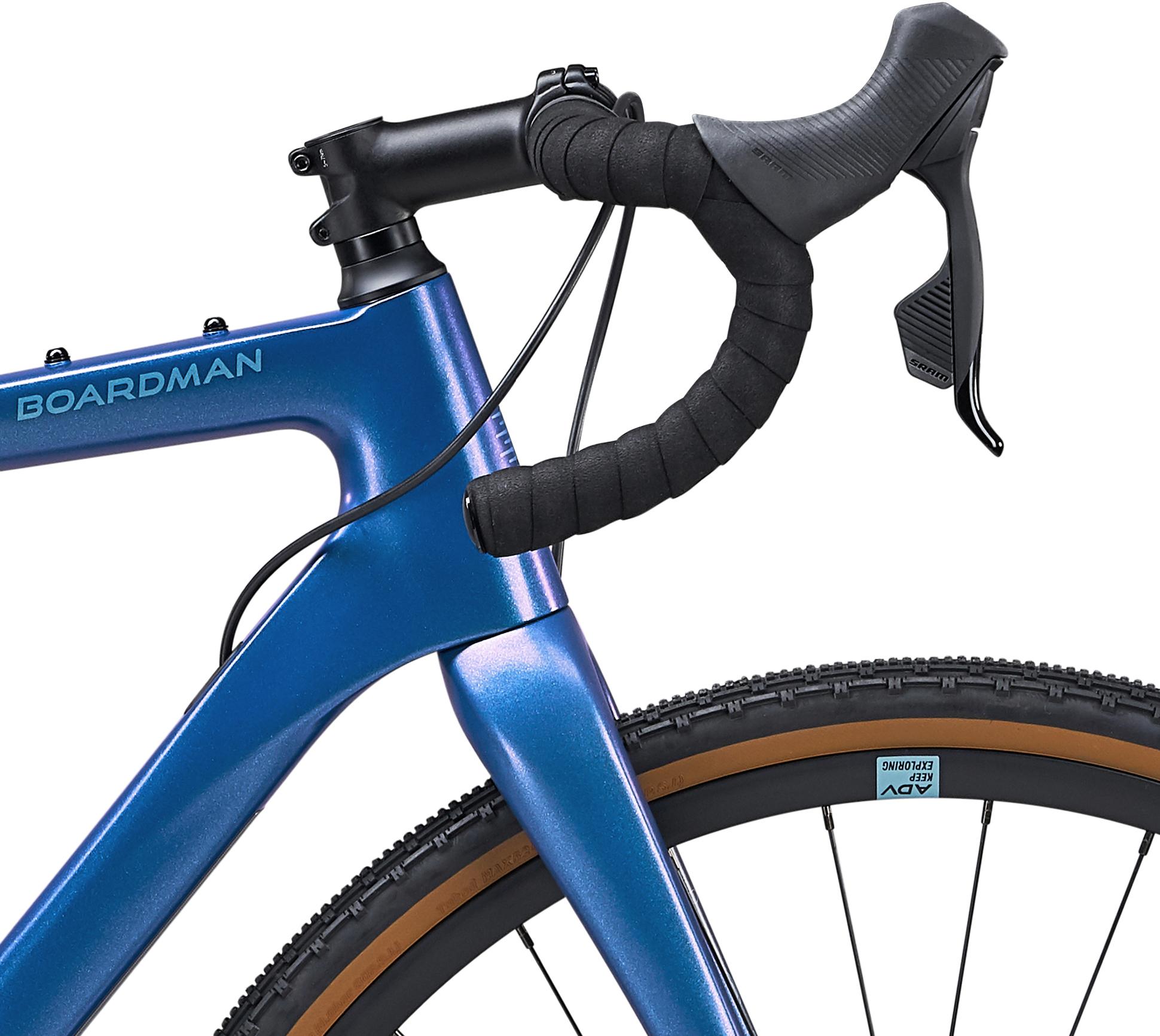

Considered Touchpoints

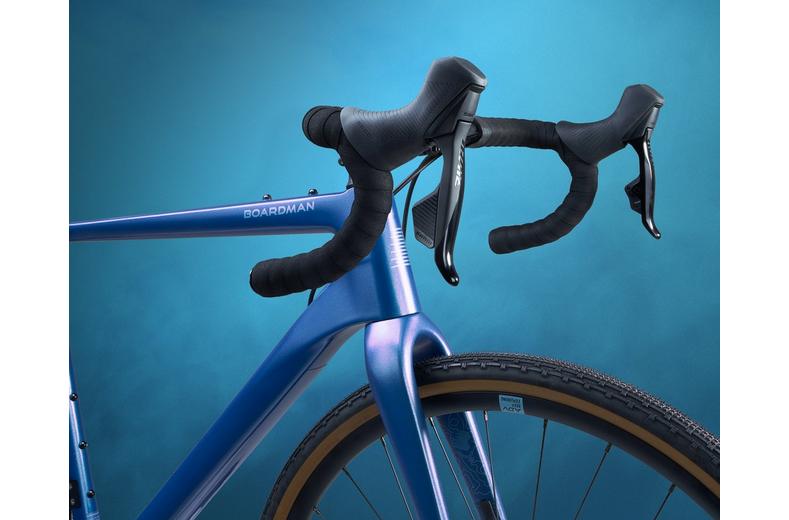

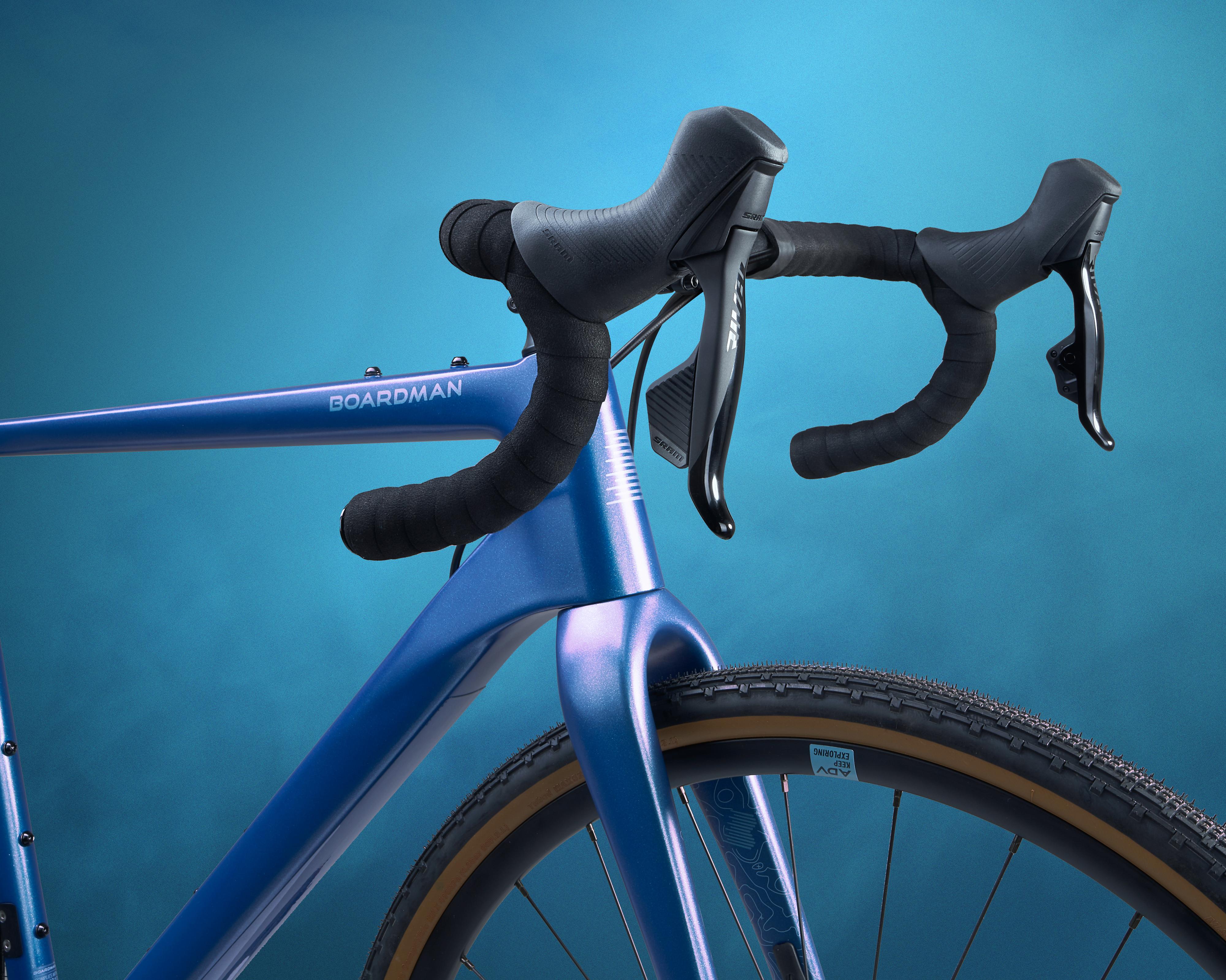

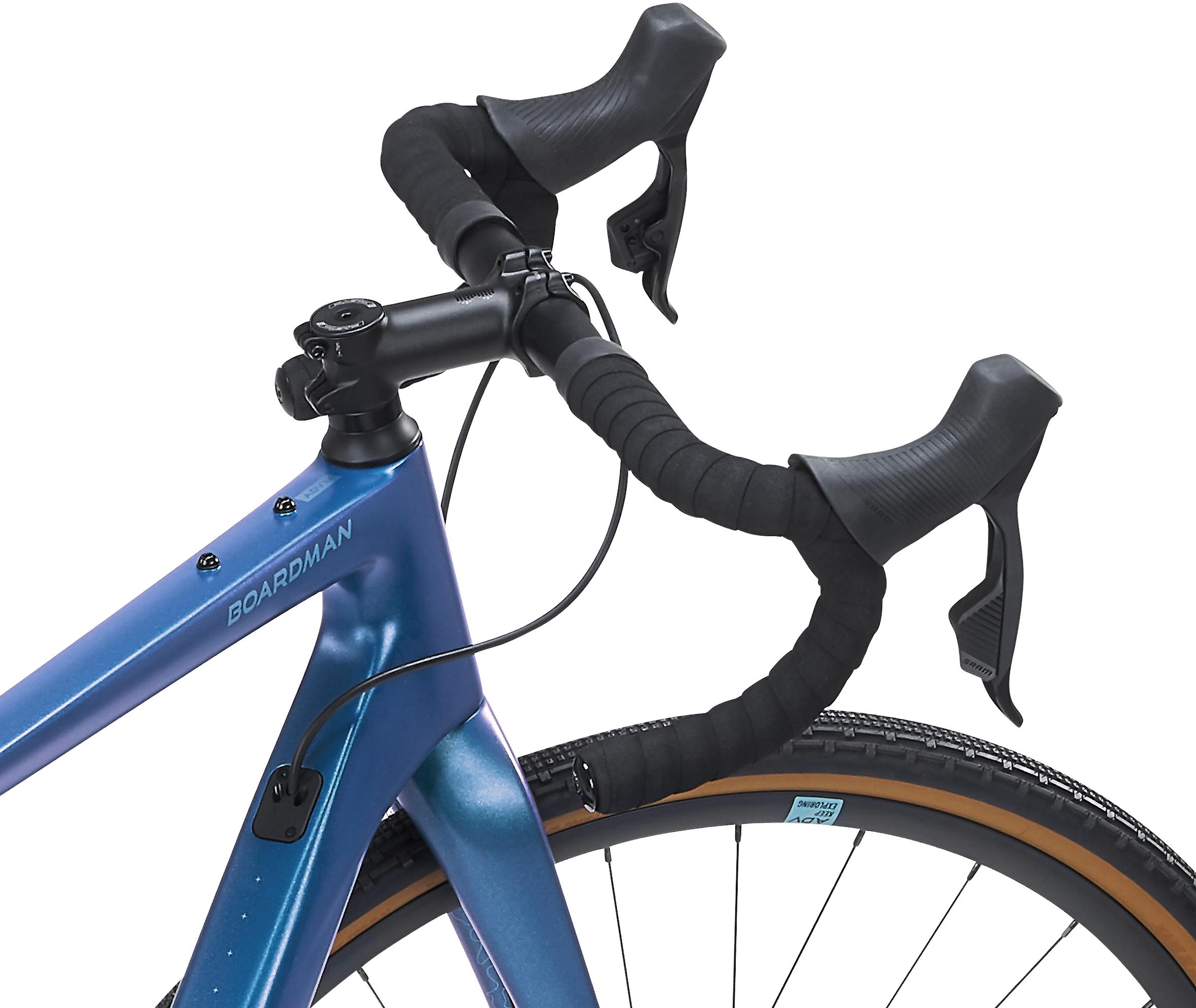

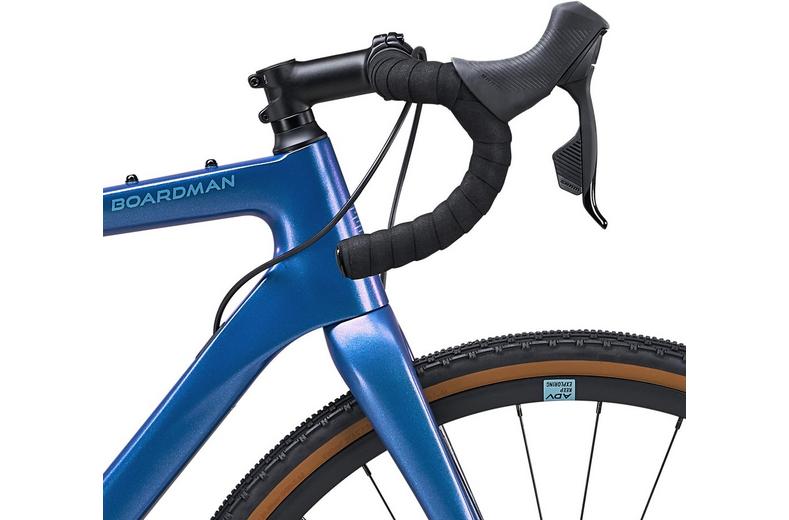

A Prologo Akero AGX saddle is a comfortable, lightweight perch designed for rough riding. The Boardman ADV 9.4 handlebars have a 6 degree flare to the drops, offering a wider stance for better control when descending off road. A Boardman alloy stem and 27.2mm seatpost complete the cockpit package.

Boardman ADV 9.4 Adventure Bike Accessories

To give you confidence to take your new bike anywhere the Kryptonite Evo Mini7 lock and flex cable are lightweight but incredibly secure, the loop cable making sure your front wheel is locked up too. Ideal for night time riding on and off road riding as well as lengthy canal tunnels the Bikehut Front 1000 and Bikehut Rear 50  pair perfectly to provide ample light no matter how much speed you’re carrying.

Maintain your Boardman ADV 9.4 Adventure Bike

If you plan on using your Boardman ADV 9.4 Adventure Bike regularly, then we’d recommend our CycleCare services to make sure your new bike stays in top shape. Just like the annual service you’d get done on your car, we’ll check your bike’s components depending on the service you choose, then make any repairs and make sure your bike is safe to ride. On the subject of safety, you’re also welcome to bring your Boardman ADV 9.4 Adventure Bike to any Halfords store for unlimited safety checks at any time.

Our Guarantee
Thanks to our confidence in the high quality bikes we sell, Halfords offer a lifetime guarantee on all frames and rigid forks, so you can ride your Boardman ADV 9.4 Adventure Bike safe in the knowledge that it’s built to last.

*Please see our T&C's here

Size Guide


Height (cm) Inside Leg (cm) Frame Size
170 - 179 74 - 82 Small
177 - 183 78 - 85 Medium
181 - 189 82 - 89 Large
187 - 195 86 - 94 X Large

Geometry Table


Size S
(50cm)		 M
(52.5cm)		 L
(54cm)		 XL
(56cm)
Stack 550mm 570mm 588mm 607mm
Reach 367mm 381mm 392mm 404mm
Seat Tube C-T 500mm 525mm 540mm 560mm
Effective Top Tube 535mm 555mm 572mm 585mm
Head Tube 120mm 140mm 160mm 180mm
Head Angle 71o 71.5o 71.5o 71.5o
Seat Angle 73o 73o 73o 73o
Chainstay Length 425mm 425mm 425mm 425mm
Fork Offset 50mm 50mm 50mm 50mm
Bottom Bracket Drop 73mm 73mm 73mm 73mm
Crank Length 170mm 172.5mm 172.5mm 175mm
Stem Length 80mm 90mm 100mm 110mm
Bar Width 400mm 420mm 420mm 440mm



Additional Information:

Learn more about our maximum weight limits on adult bikes here.

The above images and description serve as an example. Current disruption in the global supply network mean that specific components may not be available. If that occurs, we may replace those components with similar parts of the same or higher quality, provided that any such substitutions do not negatively affect the overall quality or use of the product.
